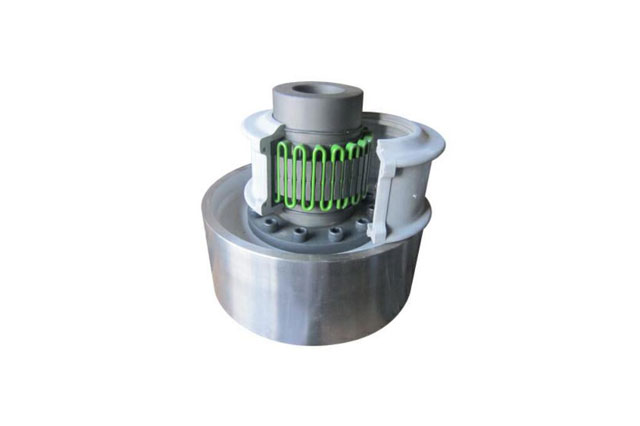

T35单法兰联结蛇形弹簧联轴器

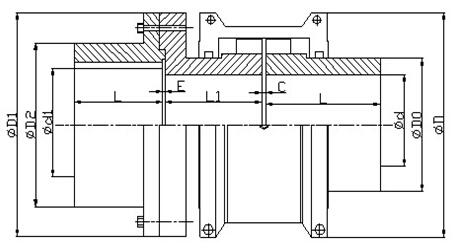

| 型号 | 公称转矩Tn N.m | 许用转速（n） | 轴孔d1 mm | 轴孔d mm | 轴孔长度L mm | 小间距L1mm | 大间距L1mm | Dmm | D1mm | D2mm | 间隙Cmm | 间隙Emm | 质量无孔 kg | 充油量 Kg |
| 6020T35 | 52 | 3600 | 18-35 | 18-28 | 50 | 50 | 102 | 95 | 86 | 52 | 3 | 1.2 | 2.9 | 0.027 |
| 6030T35 | 149 | 3600 | 22-42 | 22-35 | 50 | 50 | 109 | 105 | 94 | 60 | 3 | 1.2 | 3.9 | 0.041 |
| 6040T35 | 249 | 3600 | 28-56 | 28-42 | 55 | 55 | 109 | 115 | 112 | 78 | 3 | 1.2 | 5.44 | 0.054 |
| 6050T35 | 435 | 3600 | 32-65 | 32-50 | 65 | 65 | 109 | 130 | 125 | 85 | 3 | 1.2 | 8.8 | 0.068 |
| 6060T35 | 684 | 3600 | 40-80 | 40-56 | 75 | 75 | 166 | 150 | 144 | 105 | 3 | 1.2 | 12.85 | 0.086 |
| 6070T35 | 994 | 3600 | 48-85 | 48-65 | 80 | 80 | 166 | 160 | 152 | 110 | 3 | 1.5 | 16.5 | 0.1213 |
| 6080T35 | 2050 | 3600 | 55-95 | 55-80 | 95 | 95 | 204 | 190 | 178 | 122 | 3 | 1.5 | 28.36 | 0.172 |
| 6090T35 | 3730 | 3600 | 65-110 | 65-95 | 105 | 105 | 204 | 210 | 209 | 142 | 3 | 1.5 | 41.68 | 0.254 |
| 6100T35 | 6280 | 2440 | 75-130 | 75-110 | 125 | 125 | 205 | 250 | 250 | 172 | 5 | 2 | 68.64 | 0.426 |
| 6110T35 | 9320 | 2250 | 85-150 | 85-120 | 135 | 135 | 205 | 270 | 270 | 198 | 5 | 2 | 89.86 | 0.508 |
| 6120T35 | 13700 | 2050 | 100-170 | 100-140 | 155 | 155 | 205 | 310 | 310 | 225 | 6 | 2 | 136.42 | 0.735 |
| 6130T35 | 19900 | 1800 | 110-190 | 110-170 | 175 | 175 | 205 | 346 | 346 | 238 | 6 | 2 | 196.18 | 0.908 |
| 6140T35 | 28600 | 1650 | 125-210 | 125-200 | 190 | 190 | 205 | 384 | 386 | 268 | 10 | 2 | 274.52 | 1.135 |
