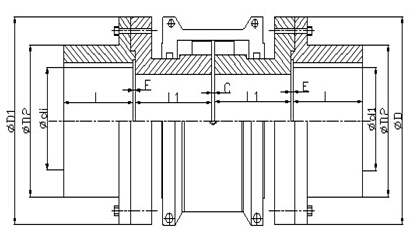

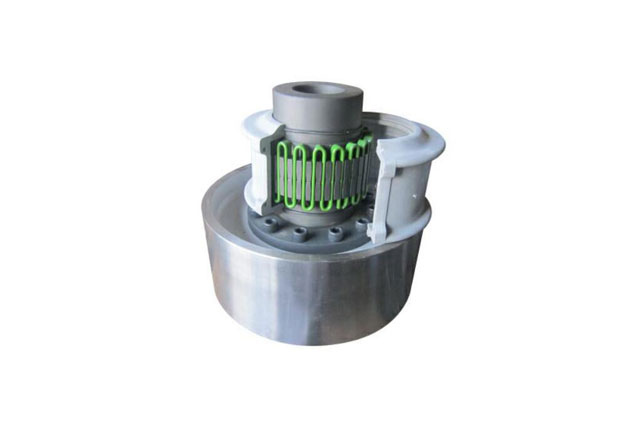

T31双法兰联结蛇形弹簧联轴器
| 型号 | 公称转矩Tn N.m | 许用转速（n） | 轴孔d1 mm | 轴孔长度L mm | 小间距L1mm | 大间距L1mm | Dmm | D1mm | D2mm | 间隙Cmm | 间隙Emm | 质量无孔 kg | 充油量 Kg |
6020T31 | 52 | 3600 | 18-35 | 50 | 50 | 203 | 95 | 86 | 52 | 5 | 1.2 | 3.98 | 0.027 |
6030T31 | 149 | 3600 | 22-42 | 50 | 50 | 216 | 105 | 94 | 60 | 5 | 1.2 | 5.12 | 0.041 |
6040T31 | 249 | 3600 | 28-56 | 55 | 55 | 216 | 115 | 112 | 78 | 5 | 1.2 | 6.87 | 0.054 |
6050T31 | 435 | 3600 | 32-65 | 65 | 65 | 216 | 130 | 125 | 85 | 5 | 1.2 | 10.56 | 0.068 |
6060T30 | 684 | 3600 | 40-80 | 75 | 75 | 330 | 150 | 144 | 105 | 5 | 1.2 | 16.02 | 0.086 |
6070T31 | 994 | 3600 | 48-85 | 80 | 80 | 406 | 160 | 152 | 110 | 5 | 1.5 | 20.25 | 0.1213 |
6080T31 | 2050 | 3600 | 55-95 | 95 | 95 | 406 | 190 | 178 | 122 | 5 | 1.5 | 36.23 | 0.172 |
6090T31 | 3730 | 3600 | 65-110 | 105 | 105 | 406 | 210 | 209 | 142 | 5 | 1.5 | 52.12 | 0.254 |
6100T31 | 6280 | 2440 | 75-130 | 125 | 125 | 406 | 250 | 250 | 172 | 6 | 2 | 82.30 | 0.426 |
6110T31 | 9320 | 2250 | 85-150 | 135 | 135 | 406 | 270 | 270 | 198 | 6 | 2 | 102.3 | 0.508 |
6120T31 | 13700 | 2050 | 100-170 | 155 | 155 | 406 | 310 | 310 | 225 | 10 | 2 | 162.1 | 0.735 |
6130T31 | 19900 | 1800 | 110-190 | 175 | 175 | 406 | 346 | 346 | 238 | 10 | 2 | 252.1 | 0.908 |
6140T31 | 28600 | 1650 | 125-210 | 190 | 190 | 406 | 384 | 386 | 268 | 10 | 2 | 353.2 | 1.135 |
